Produktbeskrivning
The Victron SmartShunt 300A IP65 is a compact, high-precision battery monitor designed for campervans, motorhomes, boats, and off-grid energy systems.
Instead of a physical display, your smartphone becomes the control centre via the VictronConnect app, giving you real-time insight into your battery system with Bluetooth connectivity.
This model is fully sealed to IP65, making it suitable for demanding environments where moisture, dust, or vibration may be present.
ALL-IN-ONE BATTERY MONITOR
The SmartShunt replaces traditional battery monitors and reduces wiring complexity.
It measures:
- Battery voltage
- Charge/discharge current
- State of charge (SOC)
- Time remaining
- Historical battery data
This gives you full visibility of your energy system at all times.
BUILT-IN BLUETOOTH MONITORING
No external display required. Connect directly via Bluetooth to the VictronConnect app.
You can:
- Monitor real-time battery status
- View SOC and power flow
- Track historical performance
- Configure battery capacity and chemistry
- Update firmware wirelessly
Perfect for DIY campervan builds where clean installation is important.
HIGH PRECISION MEASUREMENT
The SmartShunt uses a precision 300A / 50mV shunt for extremely accurate readings.
Key accuracy benefits:
- Very low current draw (<1 mA)
- High accuracy SOC calculation
- Reliable long-term battery tracking
- Suitable for large battery banks
Auxiliary input allows monitoring of:
- Second battery voltage
- Temperature sensor
- Midpoint monitoring
IDEAL FOR CAMPERVAN & OFF-GRID SYSTEMS
The SmartShunt is widely used in:
- Campervan electrical systems
- Motorhome lithium setups
- Boat and marine battery banks
- Off-grid solar systems
- Victron-based installations
It is especially useful in systems where space and wiring simplicity matter.
IP65 PROTECTION FOR HARSH ENVIRONMENTS
Unlike standard battery monitors, this model is fully sealed.
Benefits:
- Dust-tight construction
- Water-resistant housing
- Suitable for engine bays and wet compartments
- Reliable operation in vibration-heavy environments
TECHNICAL SPECIFICATIONS
- Model: SHU065130050
- Continuous current: 300A
- System voltage range: 6.5 – 70V DC
- Shunt type: 50mV precision shunt
- Communication: Bluetooth + VE.Direct
- Auxiliary input: Yes (battery / temperature / midpoint)
- Power consumption: < 1 mA
- Operating temperature: -40°C to +50°C
- Protection rating: IP65
- Dimensions: 44 × 120 × 38 mm
- Weight: approx. 0.4–0.5 kg
KEY BENEFITS
- Accurate all-in-one battery monitoring
- Built-in Bluetooth (VictronConnect app)
- IP65 waterproof design
- Minimal wiring and easy installation
- Suitable for lithium and lead-acid systems
- Works with GX systems (Cerbo GX, etc.)
- High precision 300A measurement
- Ideal for campervan and marine use

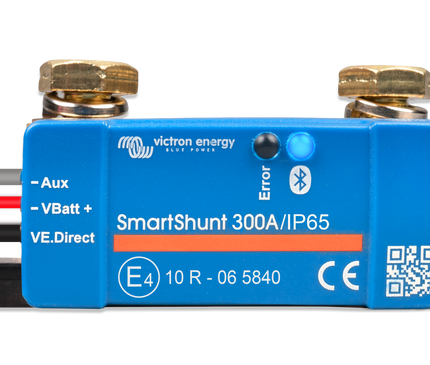

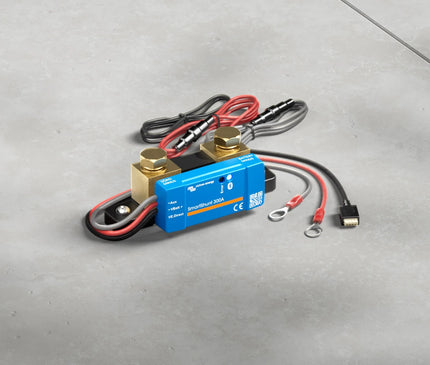

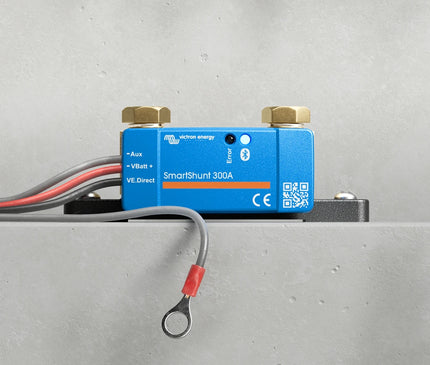

VICTRON SmartShunt IP65 300A/50mV Batterimonitor med Bluetooth
1 080 kr
