Produktbeskrivning

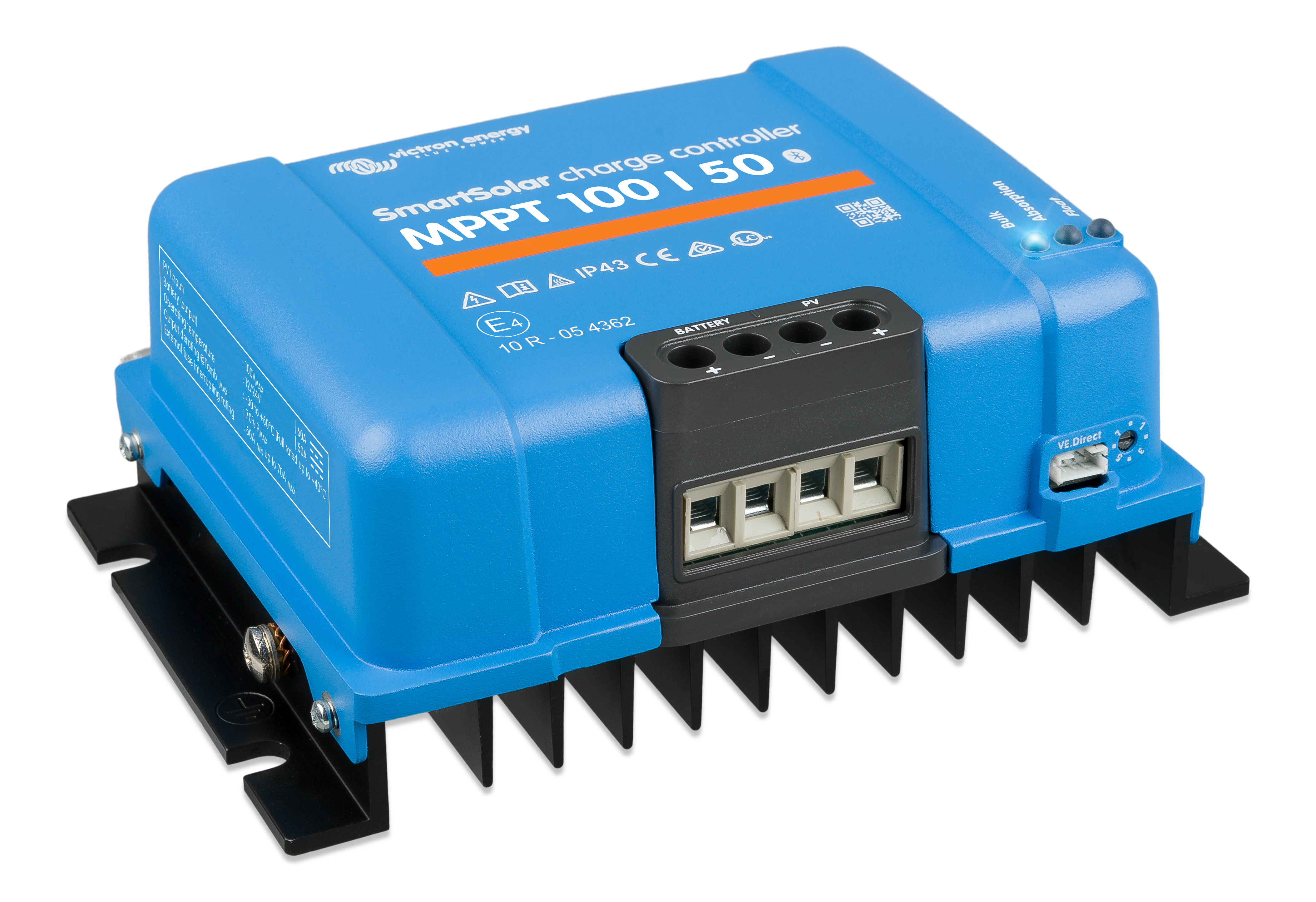

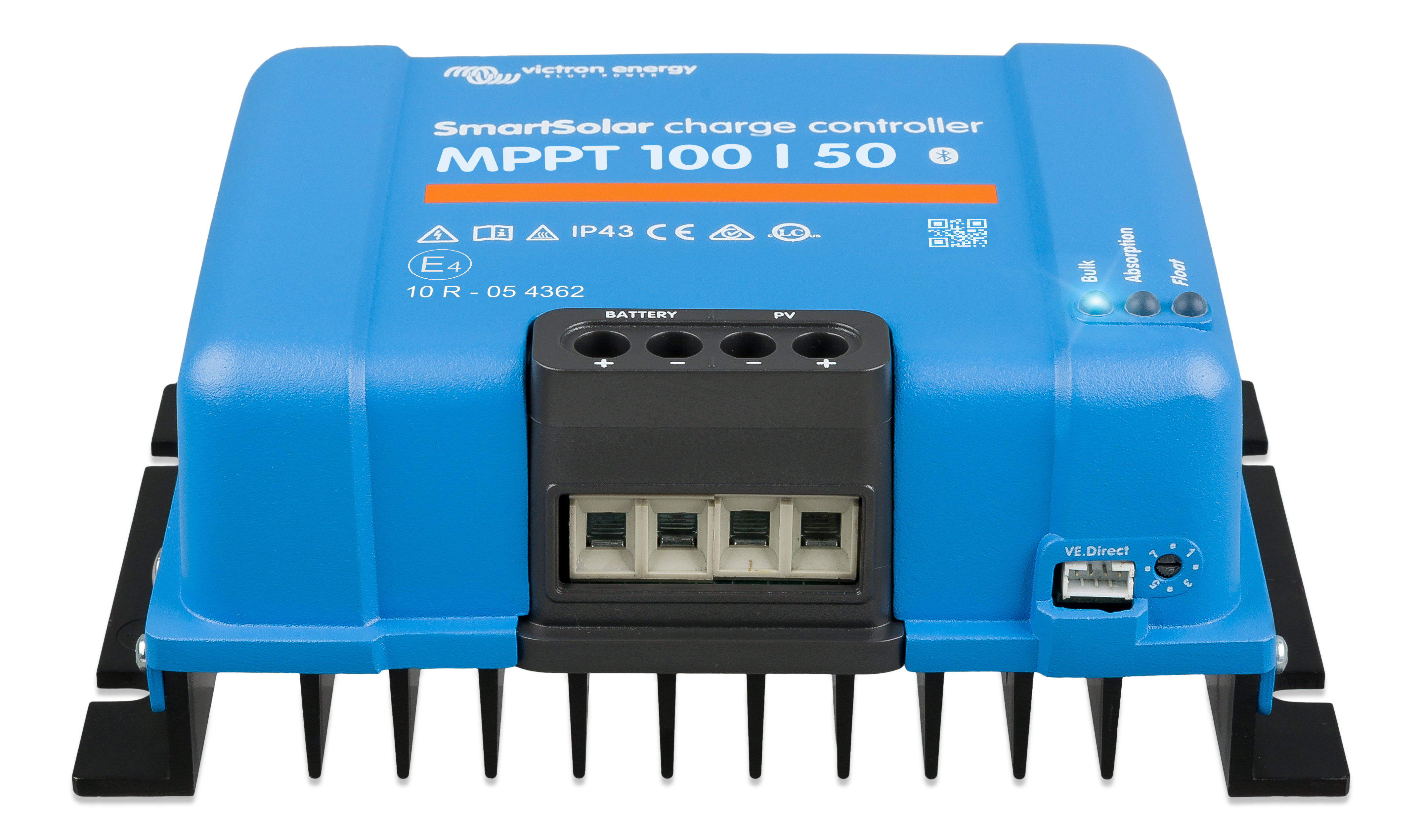

Get the maximum performance from your solar panels with the Victron SmartSolar MPPT 100/50, one of the most advanced solar charge controllers available for campervans, motorhomes, boats, and off-grid power systems.
Using ultra-fast Maximum Power Point Tracking (MPPT) technology, the SmartSolar controller continuously optimizes solar energy harvest, even in changing weather conditions and partial shading. With up to 98% conversion efficiency, it helps you charge your batteries faster while maximizing the energy generated by your solar panels.
Maximum Solar Harvest
The SmartSolar MPPT continuously tracks the optimal power point of your solar panels to maximize energy production throughout the day.
Benefits include:
- Ultra-fast MPPT tracking
- Increased solar yield in cloudy conditions
- Excellent performance during partial shading
- Higher charging efficiency than traditional PWM controllers
- Up to 98% efficiency with natural cooling design
Built-In Bluetooth Connectivity
Monitor and configure your solar system directly from your smartphone or tablet using the free VictronConnect app.
With VictronConnect you can:
- Monitor real-time charging performance
- View historical production data
- Adjust charging parameters
- Update firmware wirelessly
- Configure battery charging profiles
Intelligent Battery Charging
The SmartSolar MPPT uses an advanced adaptive charging algorithm to protect and extend battery life.
Features:
- Automatic Bulk, Absorption and Float charging stages
- Battery temperature compensation
- Over-temperature protection
- Reverse polarity protection
- Reverse current protection
- PV short-circuit protection
Compatible with Most Battery Types
Suitable for virtually every modern battery system.
Compatible with:
- Lithium (LiFePO4)
- AGM
- Gel
- Flooded Lead-Acid Batteries
Dedicated charging profiles ensure optimal charging performance and battery longevity.
Perfect for Mobile & Off-Grid Applications
Designed to perform reliably in demanding environments.
Suitable for:
- Campervans
- Motorhomes
- Caravans
- Boats & marine applications
- Off-grid cabins
- Tiny houses
- Backup power systems
- Solar battery charging systems
The SmartSolar MPPT is engineered to maintain peak performance despite vibration, movement, changing sunlight conditions, and partial shading.
Technical Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 12V / 24V (Auto Select) |
| Maximum Charge Current | 50A |
| Maximum PV Open Circuit Voltage (Voc) | 100V |
| Maximum PV Power @ 12V Battery | 700W |
| Maximum PV Power @ 24V Battery | 1400W |
| Charging Algorithm | Adaptive 3-Stage (Bulk, Absorption, Float) |
| Battery Compatibility | Lithium (LiFePO4), AGM, Gel, Flooded Lead-Acid |
| Bluetooth | Built-in |
| Communication Port | VE.Direct |
| Remote Monitoring | Via VictronConnect & GX Devices |
| Temperature Compensation | Yes |
| Cooling | Passive (Fanless) |
| Protection Rating | IP43 (electronic components) |
| Operating Temperature | -30°C to +60°C |
| Humidity | Up to 95% non-condensing |

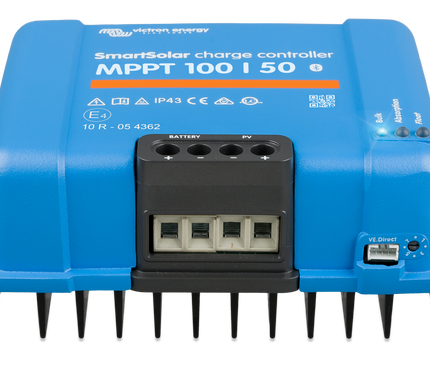

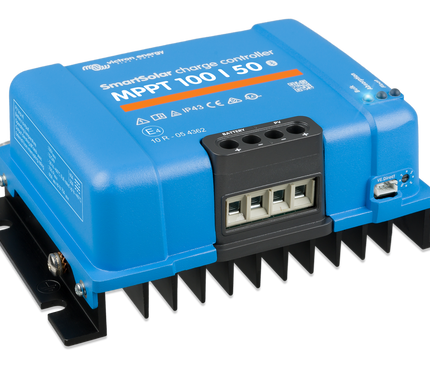

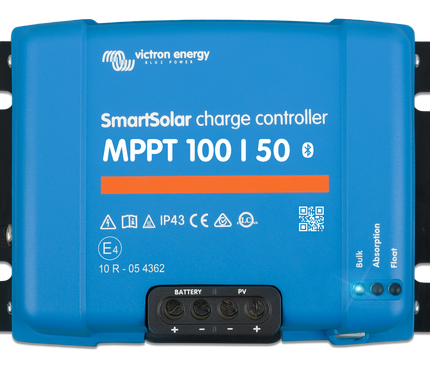

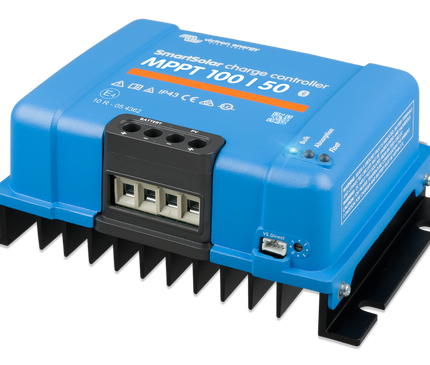

SmartSolar MPPT 100/50
1 350 kr
