Product description
The Victron Smart BatteryProtect 12/24V 65A protects your campervan battery from excessive discharge by automatically disconnecting non-essential loads before the battery reaches a damaging low voltage level.
Designed for campervans, motorhomes, boats, and off-grid systems, the Smart BatteryProtect helps extend battery life, prevents unexpected shutdowns, and ensures your starter battery retains enough power when you need it most. The integrated Bluetooth functionality allows easy configuration and monitoring through the VictronConnect app.
Protect Your Battery Investment
Deep discharging can significantly reduce battery lifespan. The Smart BatteryProtect automatically disconnects connected loads before the battery voltage drops too low.
Benefits include:
- Prevents harmful deep discharge
- Extends battery lifespan
- Protects starter batteries
- Prevents unexpected power loss
- Improves system reliability
Ideal for both lithium and lead-acid battery systems.
Built-In Bluetooth Monitoring
Using the free VictronConnect app, you can easily configure and monitor the Smart BatteryProtect directly from your smartphone.
Features include:
- Adjustable disconnect voltages
- Adjustable reconnect voltages
- Real-time monitoring
- Simple wireless setup
- Firmware updates via Bluetooth
For advanced users, custom voltage thresholds can be programmed to perfectly match your battery type and application.
Compatible with 12V and 24V Systems
The Smart BatteryProtect automatically detects system voltage and can be used in both 12V and 24V installations.
Suitable for:
- Campervans
- Motorhomes
- Caravans
- Boats
- Off-grid cabins
- Solar battery systems
The device supports continuous loads up to 65A
Lithium Battery Ready
A dedicated lithium mode allows integration with battery management systems (BMS), making the Smart BatteryProtect an excellent choice for modern LiFePO4 battery installations.
Designed for DIY Campervan Builders
The compact size makes installation simple, even in smaller electrical cabinets.
Additional protection features include:
- Overvoltage protection
- Delayed disconnect function
- Delayed reconnect function
- Alarm output
- Ignition-proof MOSFET switching (no internal relays)
- Ultra-low power consumption
Technical Specifications
| Specification | Value |
|---|---|
| Model | Victron Smart BatteryProtect 12/24V 65A |
| Operating Voltage | 6–35V DC |
| System Voltage | 12V / 24V Auto Detect |
| Continuous Current | 65A |
| Peak Current (30 sec) | 250A |
| Bluetooth | Built-in |
| Battery Compatibility | Lithium (LiFePO4), AGM, Gel, Flooded Lead Acid |
| Alarm Output | Yes |
| Connection Size | M6 |
| Dimensions | 40 × 48 × 106 mm |
| Weight | 0.2 kg |
| Operating Temperature | -40°C to +40°C |
| Communication | VictronConnect App |
Key Benefits
- Protects batteries against deep discharge
- Built-in Bluetooth connectivity
- Adjustable voltage thresholds
- Compatible with lithium batteries
- Supports 12V and 24V systems
- Continuous current up to 65A
- Compact and easy to install
- Ideal for campervan electrical systems
- Ultra-low power consumption
- Trusted Victron Energy quality

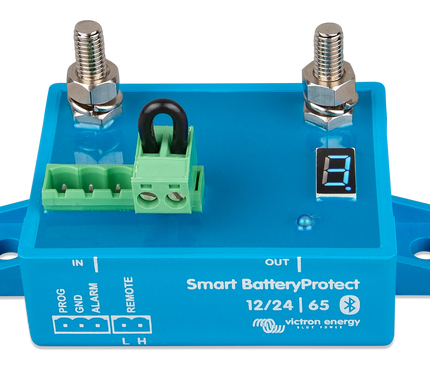

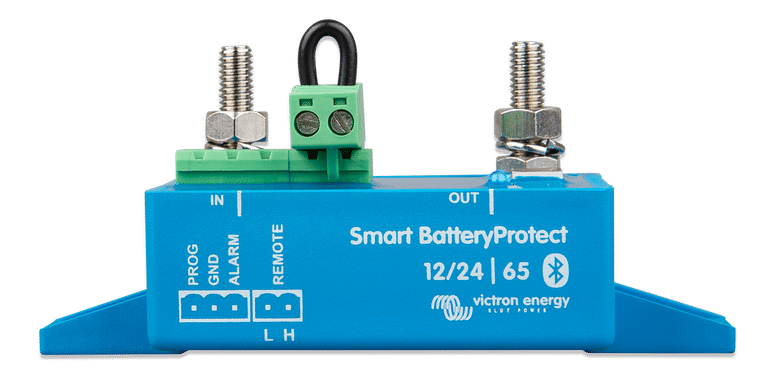

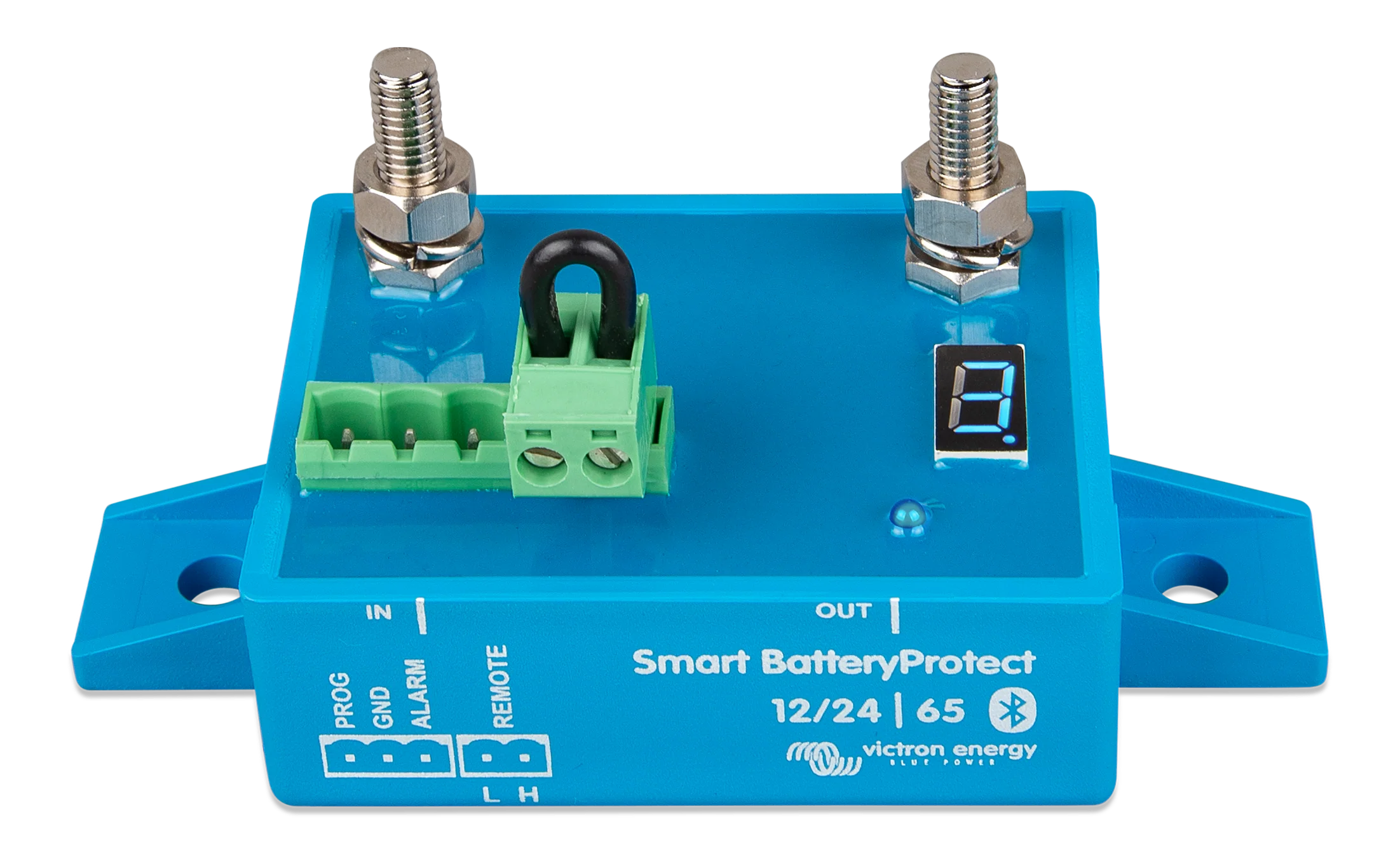

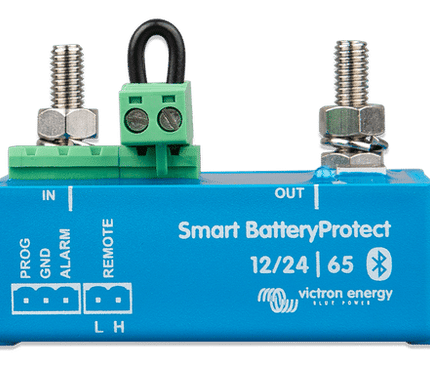

Victron Smart BatteryProtect 12/24V 65A
